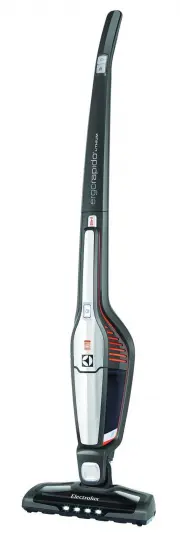

Mode d'emploi Electrolux ZB3013 - Téléchargement PDF gratuit

Page 5 - DESCRIPTION OF ERGORAPIDOTM; Alternative placement for crevice and brush; KETERANGAN ERGORAPIDOTM; Alternatif tempat meletakkan dan sikat

13 13 EN IND KR TH VIET CH TW DESCRIPTION OF ERGORAPIDO™ 1. On/off button 2. Power Up/Down button 3. On/off button, hand unit 4. Handle 5. Main body 6. Locking screw 7. Release button, hand unit 8. Charging station, wall unit 9. Charging station, floor unit 10. Adapter 11. Fine filter (inner filter)...

Page 6 - 포장 제거 및 조립

15 15 EN IND KR TH VIET CH TW Unpacking and assembly 1. Fit the handle by carefully inserting it into the main body. Charging station 1. Insert the adaptor into the mains and position the charging station on a stable and horizontal surface away from heat sources, direct sunlight or wet places. There...

Page 7 - Charging ERGORAPIDOTM; menit selah unit di letakkan pada charging stand.; Mengecas ERGORAPIDOTM; การชาร์จ ERGORAPIDOTM; Sạc ERGORAPIDOTM; sạc sẽ nhấp nháy từ từ mỗi phút.

16 16 EN IND KR TH VIET CH TW On ERGORAPIDO™ Lithium the numbers of LED lamps will indicate the level of charge. 3 LED = fully charged. If ERGORAPIDO™ is fully discharged, it requires approximately: 16h for 12V, 14h for the 14,4V; 4h for the 18V. For better battery performance, always keep ERGORAPID...

Page 8 - Vacuuming with ERGORAPIDOTM

17 17 EN IND KR TH VIET CH TW A B Vacuuming with ERGORAPIDO™ Before vacuuming, check that the nozzle wheels and the brush roll are clean from sharp objects in order to avoid scratching sensitive floors and to ensure full cleaning performance. Start and stop ERGORAPIDO™ by pushing the ON/OFF button A...

Page 9 - BRUSHROLLCLEANTM

18 18 EN IND KR TH VIET CH TW 1 2 3 BRUSHROLLCLEAN™ Technology ERGORAPIDO™ 12V, 14,4V and 18V models are equipped with BRUSHROLLCLEAN™ Technology – a function that helps to keep the brush roll free from hair and fibres. It is recommended to use this function once a week. For best results use the BRU...

Page 10 - Emptying of the dust container.; 브러쉬롤클린TM 기능은 브러시롤에 걸리는

20 20 EN IND KR TH VIET CH TW a) b) c) A Please note that the BRUSHROLLCLEAN™ function might not be able to remove thicker threads, wires or fibres that are caught in the brush roll. b) Take out the filters by pressing the release buttons Emptying of the dust container. a) Open the dust container by...

Page 11 - Cleaning the filters.; 필터 청소

21 21 EN IND KR TH VIET CH TW B Pull the filter cleaning rod (B) to its end position and release it to remove dust from the inner filter. Repeat 5 times. Cleaning the filters. (Recommended every 5th emptying). Take out both filters by pressing the release buttons Separate both filters. Tarik tongkat...

Page 12 - (jangan pernah gunakan mesin cuci piring atau mesin cuci baju); PENTING – MEMBERSIHKAN SARINGAN!; 세제를 사용하지않고 미온 수로 필터 부분을 조심해서

22 22 EN IND KR TH VIET CH TW 12 3 6 9 Rinse the filter parts carefully under lukewarm water without using any detergents. (never use the dishwasher or washing machine) Shake to remove excess water and leave to dry minimum 12h.Make sure that the filter parts are completely dried before putting them ...

Page 13 - Indiction lights-normal operation; Lampu Indikasi-penggunaan normal; Permasalah

24 24 EN IND KR TH VIET CH TW Indiction lights-normal operation What does it mean? What to do? 18V version (Li-Ion battery) : 3 lights = Battery capacity is still good > 75 % left OK 1 – 3 Orange lights during operation 2 lights = Battery capacity is still good > 25 % left OK 1 light = ERGORAP...
